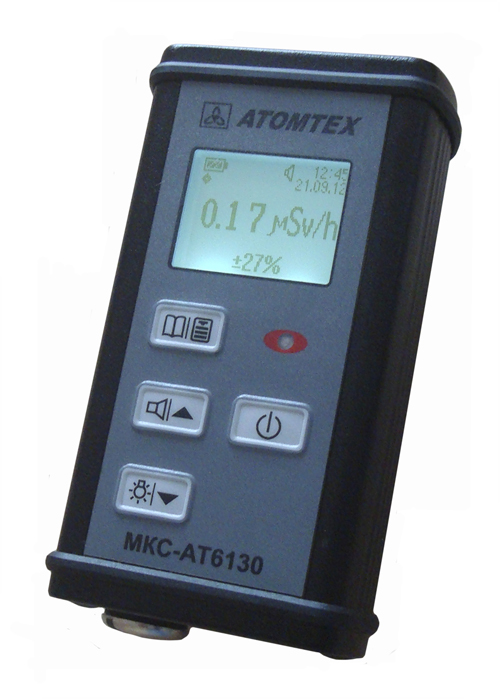

Dosimeter - radiometer MKS-AT6130, MKS-AT6130A and MKS-AT6130D
Compact device intended for ambient dose equivalent rate and ambient gamma and X-radiation dose equivalent rate measurement, as well as for measurement of beta particle flux density on contaminated surfaces. In search mode it measures count rate in counts per second.
MKS-AT6130 HAS TWO VARIANTS:
- w/o PC communication interface
- with Bluetooth interface
Features
- Low weight and small size
- Automatic compensation of intrinsic detector background
- Sound and visual alarm in case threshold level is exceeded for dose, dose rate and flux density
- Rapid reaction to statistically significant change of dose rate (measurement process restart)
- Selective measurement of beta and gamma radiation in mixed fields
- Field operation capability over a wide temperature range
- In search mode each registered gamma quantum (beta particle) is indicated by a sound signal
- Up to 2000 measurement results can be stored in non-volatile memory with information about measurement date and time
- Measurement results, current time, date and battery life indicator is displayed on LCD screen
- Measurement results can be transmittedt to a PC via Bluetooth interface (If available)
- Headphones can be attached when working in noisy environment
Operating principle
Device operating principle is based on the process of count rate
measurement of impulses, generated in Geiger-Muller counter tube under
the influence of X, gamma and beta radiation.
Count rate is converted automatically into measurable physical values
throughout the range. Energy compensating filter allows correcting
energy dependence of sensibility efficiently in entire energy range of
photon radiation.
Microprocessor-based unit is responsible for controlling the radiation
monitor operating modes, calculations, storing and displaying
measurement results and for self-checking function.
Rated sensitivity of each measurement range sets up automatically during calibration procedure.
To facilitate the process of surface contamination evaluation the radiation monitor can be secured in a holder.
The radiation monitors are microprocessor instruments with digital readout. The G-M tube with the energy compensated filter is used is a detector.
MKS-AT6130 Radiation Monitor meets
International standard requirements: IEC 60846-1:2009, IEC 60325:2002
Safety standard requirements: IEC 61010-1:1990
EMC requirements: EN 55022:1998+А1:2000+А2:2003, EN 55024:1998+A1:2001+A2:2003,
IEC 61000-4-2:2001, IEC 61000-4-3:2008
Specification
Ambient gamma and X radiation dose rate |
0.1 µSv/h...10 mSv/h |
equivalent measurement range | or 10 µrem/h...1 rem/h * |
Ambient gamma and X radiation dose |
0.1 µSv...100 mSv |
equivalent measurement range | or 10 µrem...10 rem * |
Beta particles flux density (or count rate) measurement range |
10...1·104 particle/min·cm2 (or 0.1...1·104 cps) * |
Intrinsic relative error of measurement | ±20% max. |
X and gamma radiation energy range | 20 keV...3 MeV |
Spectrum maximum energy range of registered beta particles | 155 keV...3.5 MeV |
Energy dependence | |
- When gamma radiation dose rate is measured for 137Cs | ±30% |
- When beta particles flux density is measured for 90Sr+90Y | -60%...+50% |
Sensitivity | |
To 137Cs gamma radiation | 2.8 cps/µSv·h-1 |
To 90Sr + 90Y beta radiation | 0.36 cpm·cm-2/sec-1 |
Radiation overloading |
Radiation monitor can withstand 100-fold |
rise of dose rate measurement and beta | |
particles flux density upper range limit | |
for 5 minutes with readings not lower than | |
maximum | |
Continuous run time | ≥500 h |
Working temperature range | -20°C...55°C |
Relative humidity with air temperature ≤35°C without condensation | ≤95% |
Drop protection | From ≤1.5 m to hard surface |
Protection class | IP57 |
Power supply | 2 x AAA-size batteries (LR 03) |
or 2 x AAA-seize rechargeable cells | |
with nominal voltage 1.2 V | |
Overall dimensions | 110x60x38 mm |
Weight | 0.25 kg |
